Progress on Tillicks Cottage December 2016

Tom starting the Blockwork for the first floor, rear view looking East.

Another View of the Progress Made on the Blockwork of the first floor showing the inner insulation blocks with the cavity wall gap of 100 mm  and an inner 50mm Celetex insulation board nestled within the 100mm cavity.

A view showing the front of the cottage showing the progress of the Northerly wing. The view also shows the footings that have been dug in preparation for the concrete pour.

A View of the first floor joists in place in the new wing looking onto the old sitting room with the removed fireplace.

Ben finishing of  first floor joists that are replacing the void left by the removal of the old staircase and block work wall.

Another view showing the new first floor floor replacing the void where the old staircase was located, the photo also shows the new concrete floor of what will be the enlarged Kitchen Dining area.

Removing Internal Walls

View of the Kitchen before wall has been removed.

Wall removed and concrete floor removed in what was the hallway.

Another view

Update on the main extension

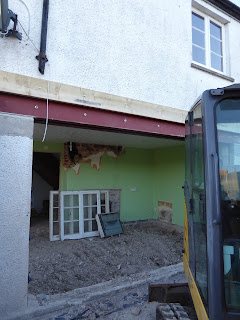

Opening made to join old sitting room to new extension more than doubling the size of the sitting room. The concrete floor has been excavated down to the clay subsoil. Two "I" beams can be seen which support the first floor wall above. The old fireplace and brick  flue will be taken out next.

Another view of the opening , showing where the front window was originally placed, this will now be a double door opening into the new conservatory.

A View from the door way into the old sitting room , showing the extent of the new combined room.

New doorway from what will be the conservatory leading into the new enlarged sitting room.

Concrete rubble taken out of the ol sitting room.

Rafters and Joists !

Rear View showing new rafters and Joists

Another View showing rafters and Joists

Rear View showing Roof of the Lean To

More Progress on the Build

The Refurbished rear lean to is now up to its roof height.

Another view showing the window slots

View showing the new wing extension now up to first floor level, also showing position of the long window light.

Re furbished Lean to up to roof level.

Chippings, Plastic Liner and Oversite

This shot shows the recently set concrete aprox 8 inches thick, which forms the oversite , which is principally a layer of concrete used to seal the earth under the ground floor of a house. The Oversite concrete is poured on to a layer of plastic which sits onto a flat bed of levelled chippings.

This is another view showing the Oversite.

A View from the south.

We have also created a layer of the rubble from the demolished walls and placed them at the entrance of the cottage, this will form the base of the parking area which we will eventually dress with gravel, you can see we have put down some chippings over the rubble to create a flat and even surface.

Footings at Tillicks Cottage

The Footings were excavated in good weather and filled with 8 cubic meters of concrete delivered by one cement mixer. David and Tom then spent 3 days putting in the footings which can be seen in the following images. the Footings have a 100 mm damp course and  are 3 blocks deep, part of the damp course will be filled with cement before putting in soil pipes and cement for the under floor level.

View of the rear lean-To which will have the downstairs cloakroom, heat pump cupboard and utility room

View of the Side extension footings.

Side extension  from the south of the Cottage

Another view of the rear extension

The redevelopment of Tillicks Cottage

Tillicks Cottage is a labourers cottage at Woodhayes Farm. It was built in 1957 in blockwork with a 50 mm cavity wall and concrete floors. We decided that it was time to update the cottage, make it larger so that it can house a small family and make it more energy efficient. we will be adding an extension in order to add an extra bedroom and have a larger sitting room. The Kitchen will also be enlarged and a new conservatory will be added. The House will also benefit from an air source heat pump with underfloor heating and an enlarged garden.

View of Tillicks Cottage earlier this Summer before work started

The new Ha Ha,  we have placed all the top soil and sub soil from the newly excavated areas in front of the cottage to make a new Ha Ha, this will give the cottage more garden space which will give a small family an area for recreation and out door space.

Another view of the Ha Ha , showing a heap of top soil which will be leveled at a later stage to go around the front of the house. The sub soil from the footings along with any rubble from the dismantled walls will be placed around the house and in a new soak away created to the left of the cottage.

Dismantling some more walls.

Part of the Kitchen Chimney and fire place is beginning to be dismantled, the wall is next to go allowing more space in the Kitchen.

Leveling part of the new Ha Ha , photo taken from upstairs.

Making space for the new extension.

The New Ha Ha leveled and ready for top soil , once the footings have been put in and walls are up.

Tapping into an Ancient Spring at Woodhayes

Woodhayes Farm lies at the edge of the Blackdown Hills, the farm's location is at the tip of this Blackdown Hills land mass,  that water appears in numerous places in the form of springs. "Spring Field" is a name given to the field where we have excavated a 9 ft deep trench , the trench is approximately 8 x 8ft square and in this trench we have placed 2 concrete rings placed on a bed of flint stones and gravel from which a plastic water pipe protrudes. Behind the concrete rings including  the lid and inspection hatch we have placed 5 tons of flint stones at the rear void between the concrete rings and the edge of the clay wall of the trench.  The purpose of this is to allow water to find its way from the source of the spring in order to fill the chamber of the  reservoir through the bed of flints and gravel.

View of the site of the spring in Spring Field Woodhayes Farm before work was done.

View of the site of the spring after work has been carried out.

The excavated area showing the concrete lid and inspection hatch of the new reservoir well located between the 2 trees.

A view of the site looking down to the field where the new trough will be located.

The site of the cattle trough now connected to the reservoir

This blackened ancient oak tree is an early piece of agricultural archeology , it was found imbedded in clay and mud , it is in all probability an item that was used to manage the spring water. The oak tree has a lid which is nailed (using hand made nais) over a deep channel aprox 20 cm wide and 20 cm deep and running for 3/4 of the length of the ok timber. At the wide end of the Oak timber there is a circular hole, presumably where the water entered. We have sent photos and details to the archaeology dept of Exeter University and we hope to hear back soon with a more detailed explanation.

An Oak tree showing the lid removed and revealing the gully.
